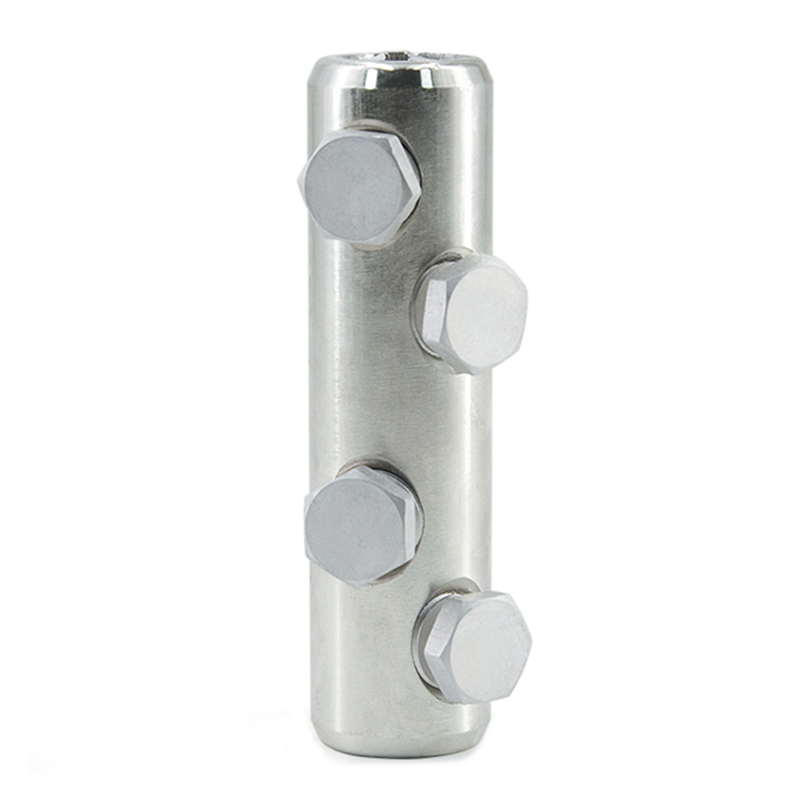

PtMechanical Shear Bolt Lugs and Connectors
High-Voltage Insulation · Smart Power Distribution · Industrial Frequency Conversion.

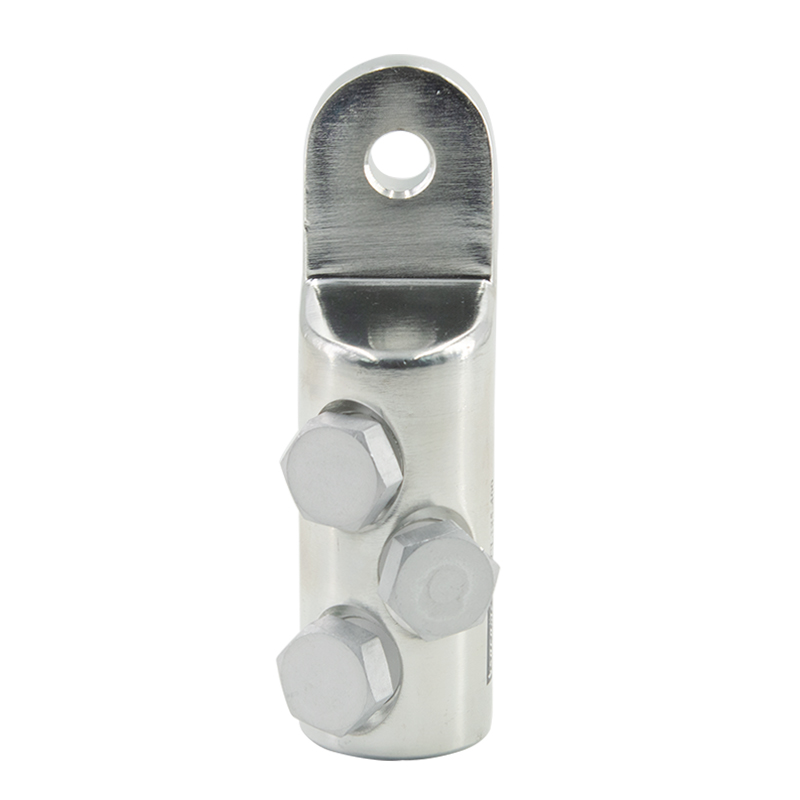

Aluminium Lug-MCL
SOCOME High-performance aluminum alloy mechanical lug designed for secure, consistent electrical connections in power distribution, industrial machinery, and lightning protection systems.
Crafted from durable aluminum alloy, it features precise torque control to prevent over-crimping or loose wiring, ensuring minimal resistance and stable current transmission.
Corrosion-resistant and oxidation-proof, it suits both indoor and outdoor applications. Compliant with UL, CE and IEC standards, customizable in sizes and surface treatments, with OEM/ODM services available, ideal for global electrical equipment exporters.
Material: High strength aluminium alloy
Usage: Connecting Cable clamp
Wire range: 16-1000mm2
Surface treatment: Nickel plating
Screw bolt material: Brass or tin plated aluminium
Certificate: ISO/CE
Operating Voltage: Up to 42KV
Package: Carton box
Others: OEM Service Offered
INQUIRY

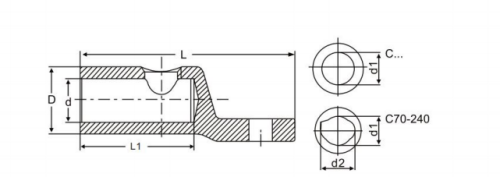

| Part No. | L±2 | D±0.3 | d±0.3 |
Bolt head AF (mm) |
| MCL-25/95-13 | 74 | 24 | 12.8 | 13 |
| MCL-35/150-13 | 100 | 28 | 15.5 | 17 |
| MCL-95/240-13 | 128.5 | 33 | 20 | 19 |
| MCL-120-300-13 | 140 | 37 | 24 | 22 |
| MCL-185/400-13 | 160 | 42 | 25.5 | 22 |
| MCL-500/630-13 | 175 | 50 | 33 | 27 |
| MCL-800-13 | 195 | 55 | 36 | 27 |
| Other dimensions bimetallic connector can be customized as your requested. | ||||
We have exported to 50 countries and obtained positive feedback and praises. Our professional technical and sales team also equipped with rich operation experience.
Strict inspection of product quality before shipment and track the life of the product. We also have passed ISO CE ROHS Certifications.
Good faith to the customer is our operating purposes. According to the requirements of customers we strictly request the delivery time of contracts making sure we delivery on time.
Sample for your reference available. We offer samples without sample fee. If you want to customize special one the sample fee will be happened.
Offer OEM Customized Service and best aftersales services for customer. Anything about our company and products free to contact us and we will try our best to help you out.
