C Copper Connector
C-Type Copper Connector

C-type open structure enables quick, insulation-free clamping of wires/rods; paired with a crimping tool, it creates a secure, high-contact-area connection for easy installation.

Model: CCT
Material: 99.9% Electronic Copper
Process: Acid washing

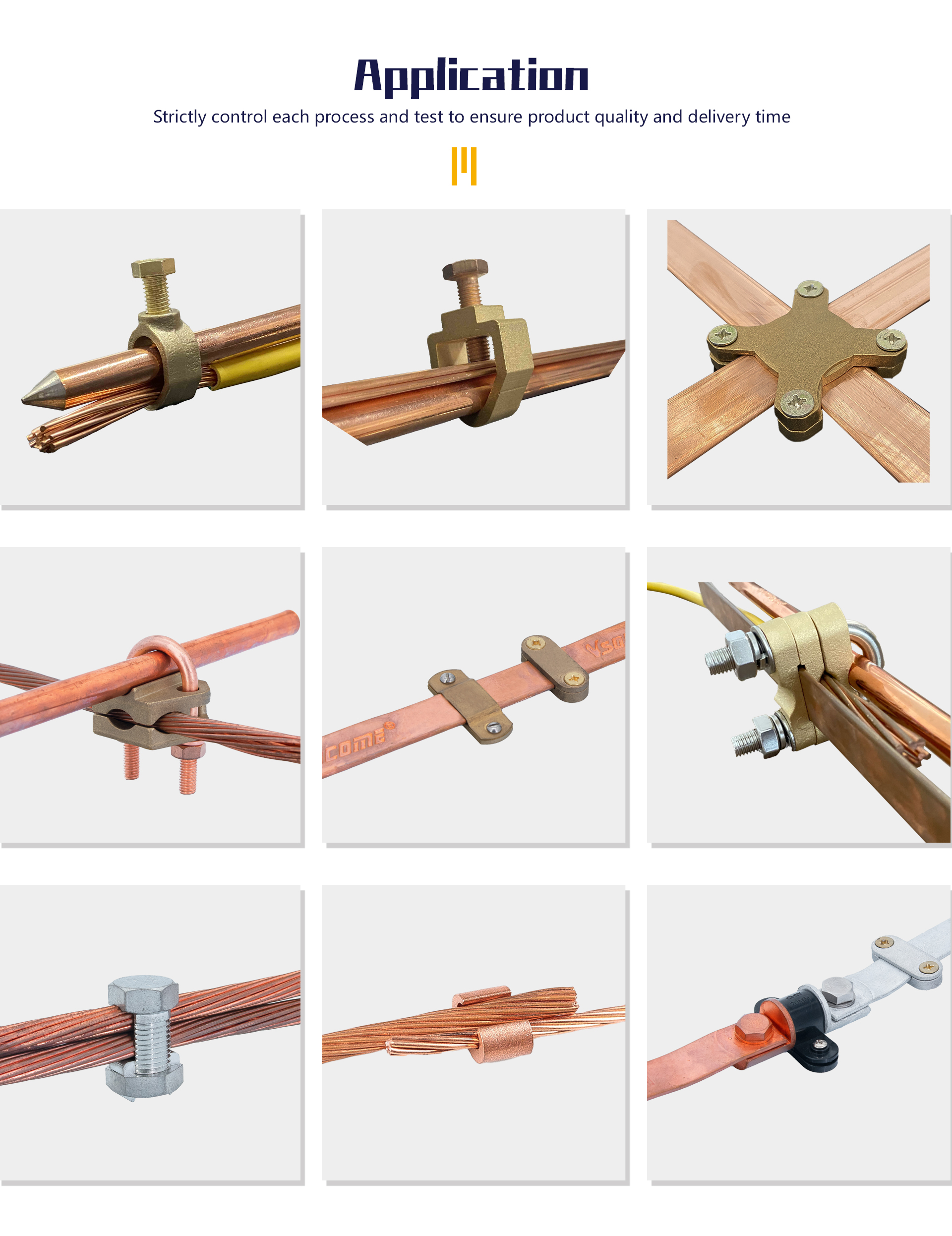

Application: Grounding System, Cable Connection
INQUIRY
Size sum of two cable cross-sectional range (mm²) Dimension（mm）
H A B L C T
C-10 7.5-14 9.5 6.3 6.2 12 4 1.6
C-16 14.5-16 11.8 7.8 7.8 13 5 1.8
C-20 16.5-20 12.8 8.6 9.7 13 6.5 2
C-26 21-26 14.7 10.2 10 16 8 2
C-44 27-44 19 13.4 14.4 18 9 4.5
C-60 45-60 21 15.4 15.4 19 10.6 4.5
C-76 61-76 24.4 17.3 17.6 20 12.5 5
C-98 77-98 27.8 20.8 18.8 23 14 5.2
C-122 99-122 30 22.1 21.2 25 14.2 5.5
C-154 123-154 34 25.5 24.4 27 17.7 5.5
C-190 155-190 37 28.5 25.4 34 17.7 5.8
C-240 191-240 40 30 28.5 38 20 6.3
C-288 241-288 44 34 31 44 23.2 7
C-365 289-365 45 37 34 49 25.2 7.2
C-450 366-450 56 41 40 58 27.8 9
C-560 451-560 61 45 45 64 32.3 10.8
C-700 561-700 88 52 49 66 35.5 12

Size sum of two cable cross-sectional range (mm²) Dimension（mm）
H A B L C T
C-10 7.5-14 9.5 6.3 6.2 12 4 1.6
C-16 14.5-16 11.8 7.8 7.8 13 5 1.8
C-20 16.5-20 12.8 8.6 9.7 13 6.5 2
C-26 21-26 14.7 10.2 10 16 8 2
C-44 27-44 19 13.4 14.4 18 9 4.5
C-60 45-60 21 15.4 15.4 19 10.6 4.5
C-76 61-76 24.4 17.3 17.6 20 12.5 5
C-98 77-98 27.8 20.8 18.8 23 14 5.2
C-122 99-122 30 22.1 21.2 25 14.2 5.5
C-154 123-154 34 25.5 24.4 27 17.7 5.5
C-190 155-190 37 28.5 25.4 34 17.7 5.8
C-240 191-240 40 30 28.5 38 20 6.3
C-288 241-288 44 34 31 44 23.2 7
C-365 289-365 45 37 34 49 25.2 7.2
C-450 366-450 56 41 40 58 27.8 9
C-560 451-560 61 45 45 64 32.3 10.8
C-700 561-700 88 52 49 66 35.5 12
