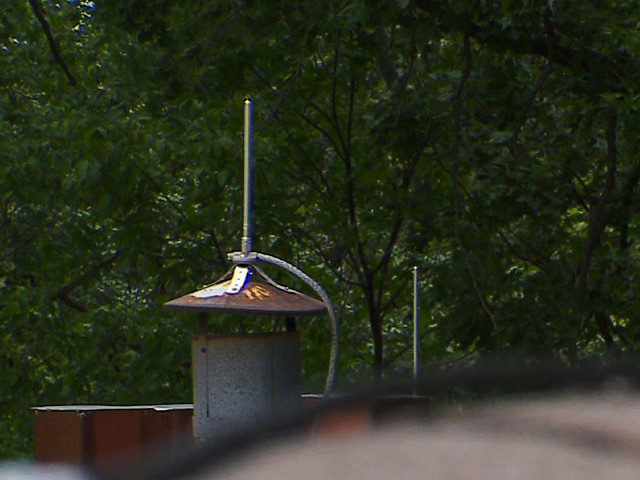

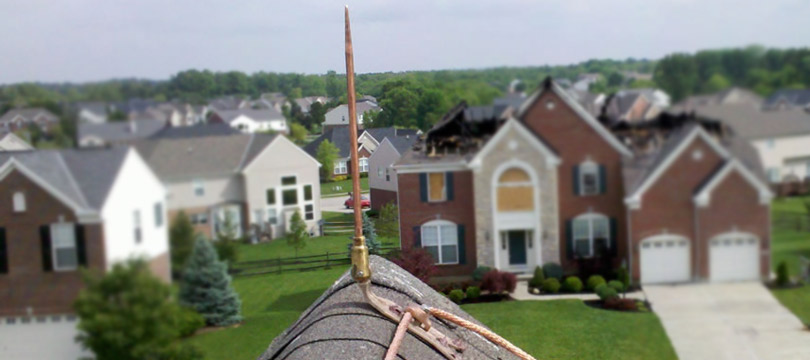

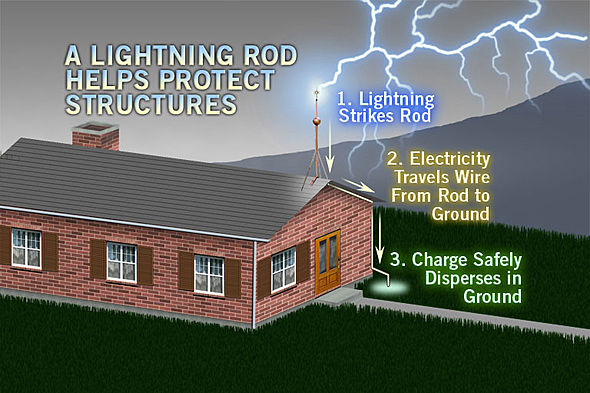

Air terminations provide a critical role in the lightning protection system, capturing the fullness of the lightning strike current and channelling this current safely to the conductor network to protect buildings and substations.

Model: ATC
Material: Pure Copper/Brass with Copper Coating/ with Copper Coating
Base: Brass/Brass with Copper Coating
Application: lightning protection system
Rod Dia.: 14mm, 15mm, 16mm
Length: 300mm, 500mm, 1000mm, 1500mm
INQUIRY

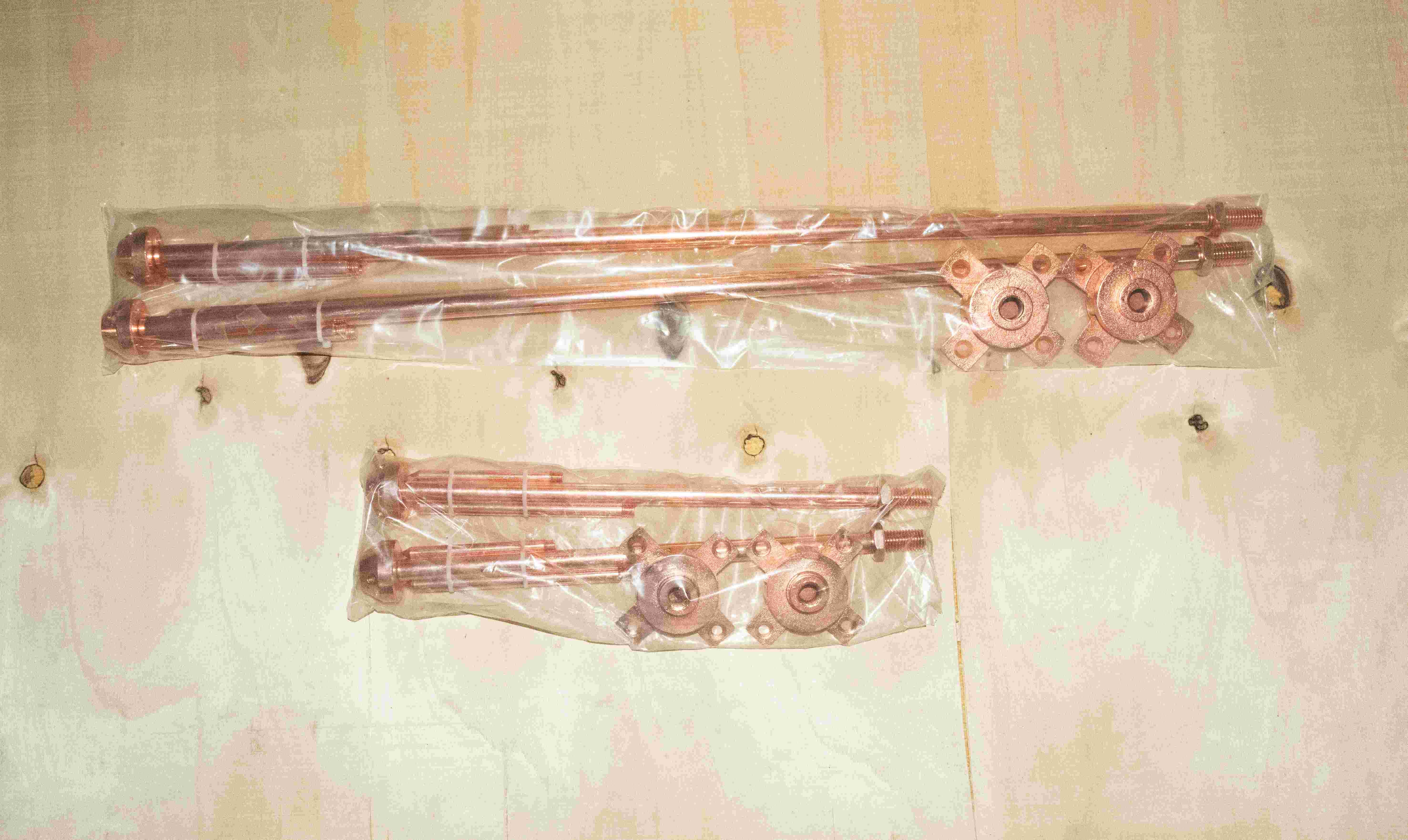

Air Termination (Complete Set)
Part No.	Rod Length (mm)	Rod Dia. (mm)	Thread Dia. (mm)	Material
ATC314	300	14	5/8'' or 14mm	1. Pure Copper 2. Brass with Copper Coating 3. Steel with Copper Coating
ATC514	500	14	5/8'' or 14mm
ATC1014	1000	14	5/8'' or 14mm
ATC515	500	15	5/8'' or 16mm
ATC1015	1000	15	5/8'' or 16mm
ATC1515	1500	15	5/8'' or 16mm
ATC516	500	16	5/8'' or 16mm
ATC1016	1000	16	5/8'' or 16mm
ATC1516	1500	16	5/8'' or 16mm
ATC2016	2000	16	5/8'' or 16mm

Air Rod base
Part No.	Rod Dia. (mm)	Material	Surface
ARB14	M14	Brass	Copper Plating
ARB16	5/8''/M16	Brass	Copper Plating
