Coupling Driving Head and Driving Tip

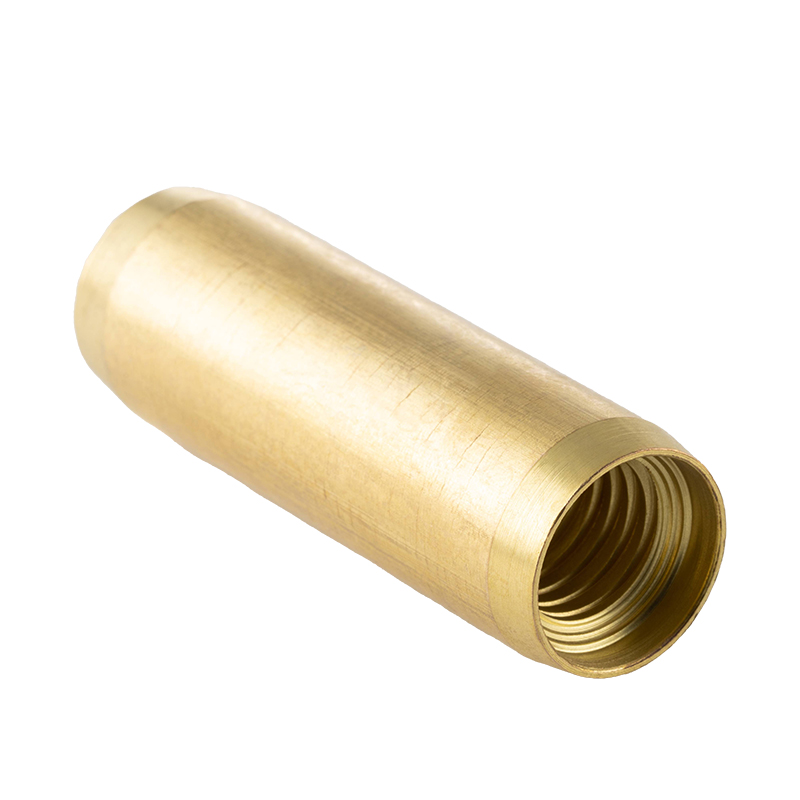

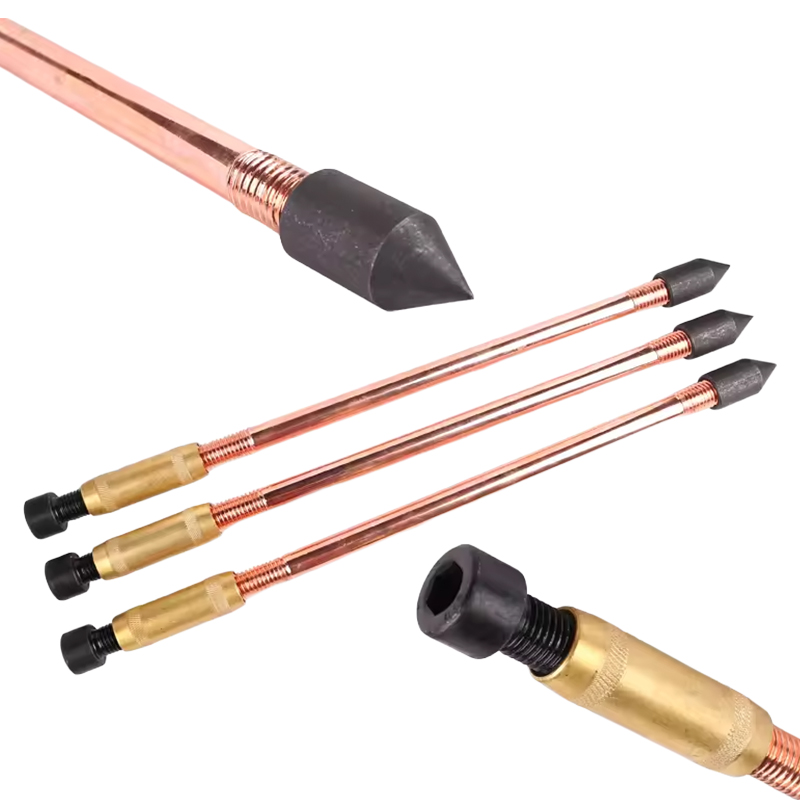

Copper Earth Coupling joins lengths of threaded copper bond earth rods together. They facilitate deep driving and ensure continual contact between the rods during and after driving.
The coupling also protects the earth rod threads during installation with the driving head.
Earth Rods and their accessories provide high fault current capacity for LV, MV, and HV substations, towers, and other distribution applications. They can be used for both overhead and underground networks to achieve optimum earthing for distribution and transmission.
Model: CC/DS/DS
Application: for connecting threaded earth rod
For rod Dia.: 12.7mm, 14.2mm, 17.2mm
Thread: 1/2", 5/8", 3/4"
INQUIRY
| Brass Coupling | ||
| Part No. | Thread | Suitable for Rod Dia |
| CC12 | 1/2" | 12.7mm |
| CC16 | 5/8" | 14.2mm |
| CC19 | 3/4" | 17.2mm/19mm |

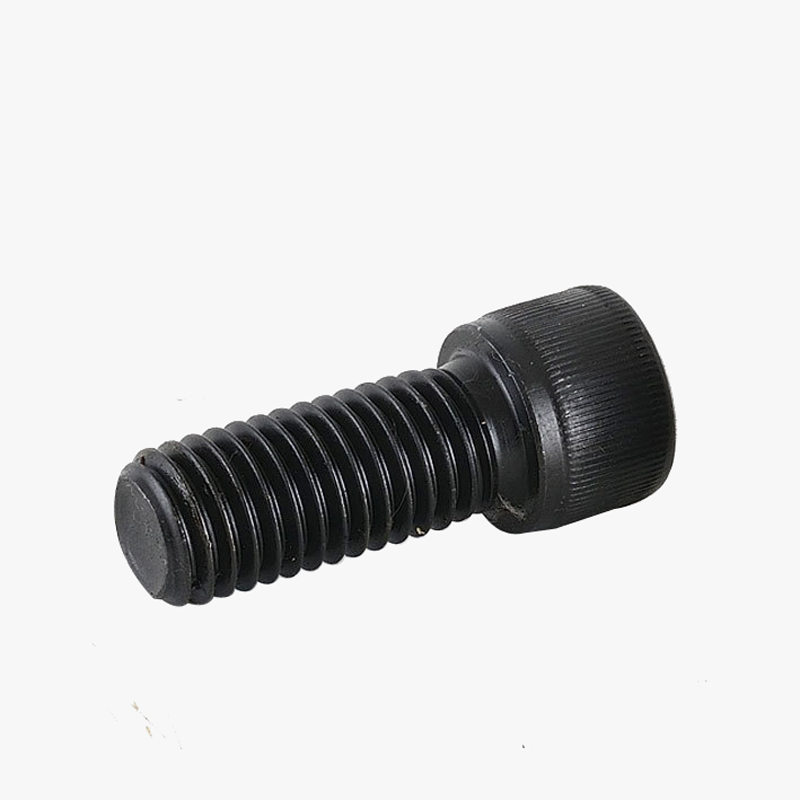

| Driving Head | ||
| Part No. | Thread | Suitable for Rod Dia |
| DH12 | 1/2" | 12.7mm |
| DH16 | 5/8" | 14.2mm |
| DH19 | 3/4" | 17.2mm/19mm |

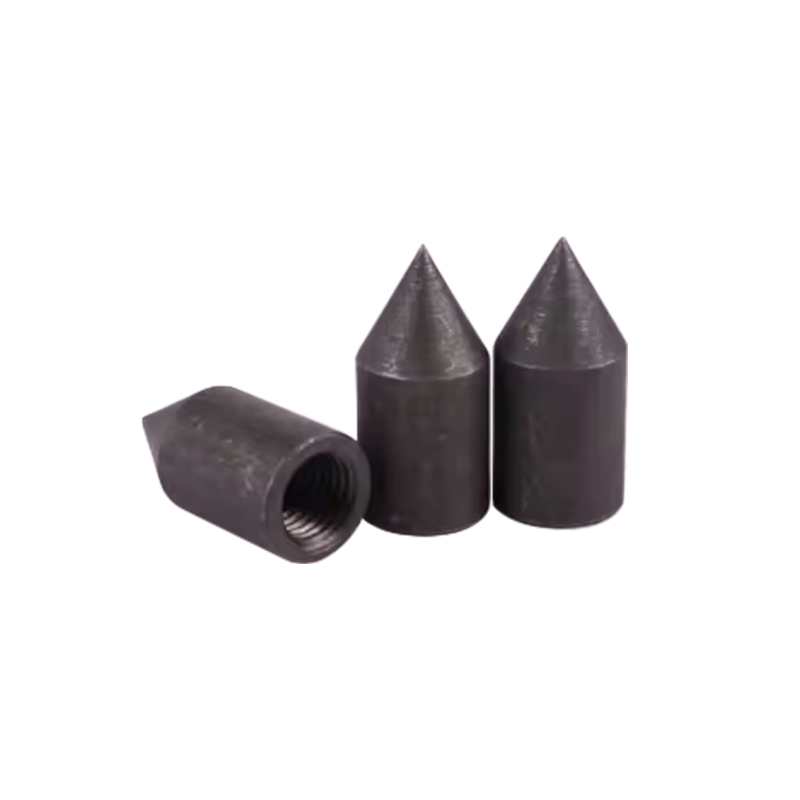

| Driving Tip | ||
| Part No. | Thread | Suitable for Rod Dia |
| DS12 | 1/2" | 12.7mm |
| DS16 | 5/8" | 14.2mm |
| DS19 | 3/4" | 17.2mm/19mm |
 |
 |
Copper Earth Coupling joins lengths of threaded copper bond earth rods together. They facilitate deep driving and ensure continual contact between the rods during and after driving.
The coupling also protects the earth rod threads during installation with the driving head.
Earth Rods and their accessories provide high fault current capacity for LV MV and HV substations towers and other distribution applications. They can be used for both overhead and underground networks to achieve optimum earthing for distribution and transmission.
We have exported to 50 countries and obtained positive feedback and praises. Our professional technical and sales team also equipped with rich operation experience.
Strict inspection of product quality before shipment and track the life of the product. We also have passed ISO CE ROHS Certifications.
Good faith to the customer is our operating purposes. According to the requirements of customers we strictly request the delivery time of contracts making sure we delivery on time.
Sample for your reference available. We offer samples without sample fee. If you want to customize special one the sample fee will be happened.
Offer OEM Customized Service and best aftersales services for customer. Anything about our company and products free to contact us and we will try our best to help you out.
